125cc Cylinder Piston Top End Kit for Suzuki DR-Z125 2003-2019 DR-Z125L 2003-2022 Generic
Product Overview:
If your cylinder is blown, compression is too low, or piston seizure has occurred, this kit is the perfect solution for you.
The kit includes everything needed for a complete top-end rebuild: cylinder, domed piston, rings, pin, clips, and top-end gasket kit (exactly as pictured).
The piston is anodized for superior heat resistance and an extended lifespan.
High-performance gaskets are used to increase durability and provide greater reliability.
Includes all gaskets shown for a full top-end rebuild.
This kit is for a standard bore size of 57.0 mm with a 48.8 mm stroke and a 14mm steel piston pin.
A great low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 125cc 4 stroke
Bore Type: Standard Bore
Cooling: Air-cooled
other specifications:
Bore diameter: STD 57mm
Stroke: 48.8mm
Pin diameter: 14mm
Pin Height: 41mm
Total height: 98mm
Height without sleeves: 69mm
Sleeve outer diameter: 64mm
Hole spacing diagonally: 94mm
Replacement Part Number:
Cylinder: 11210-44A11-0F0
Cylinder Base Gasket: 11241-05311
Cylinder Head Gasket: 11141-05202
Piston (Std): 12111-05202-0F0
Pin, Piston: 12151-05220-0A0
Piston Ring Set (Std): 12140-01410
Circlips, piston (2): 09381-14001
Valve Stem Seal (2): 09289-05015
Compatibility:
Fit for Suzuki DR-Z125 2003-2019
Fit for Suzuki DR-Z125L 2003-2022
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

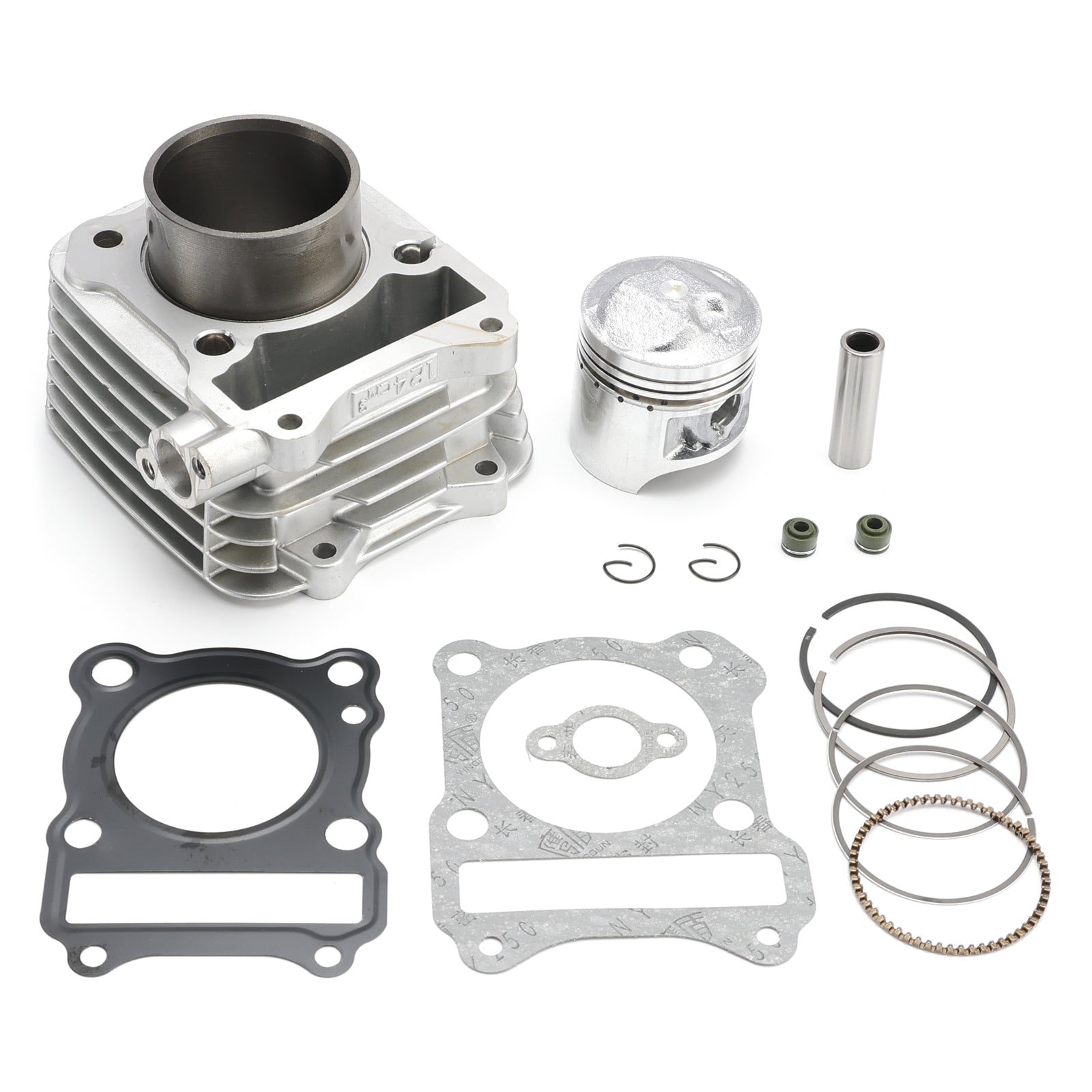

Package List:

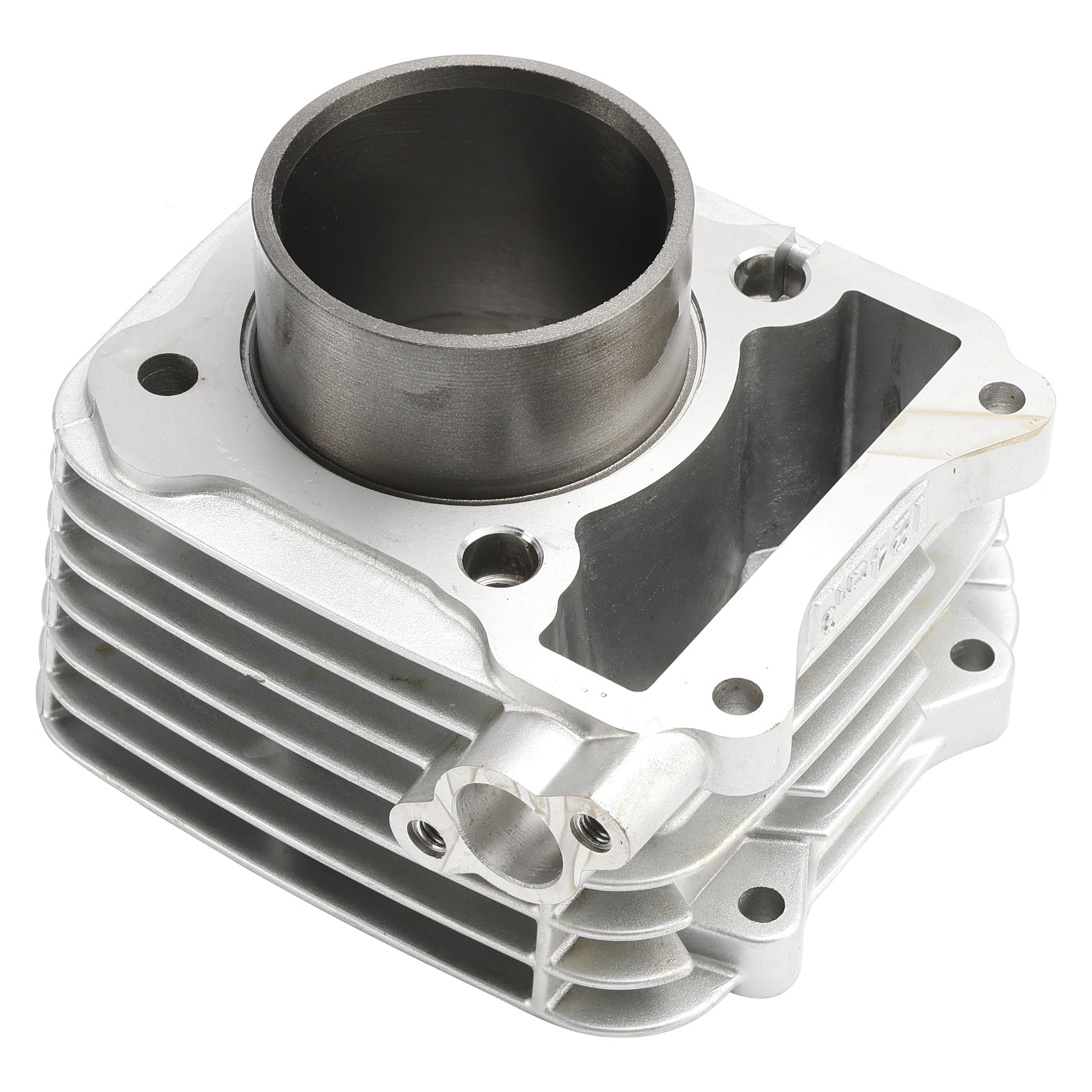

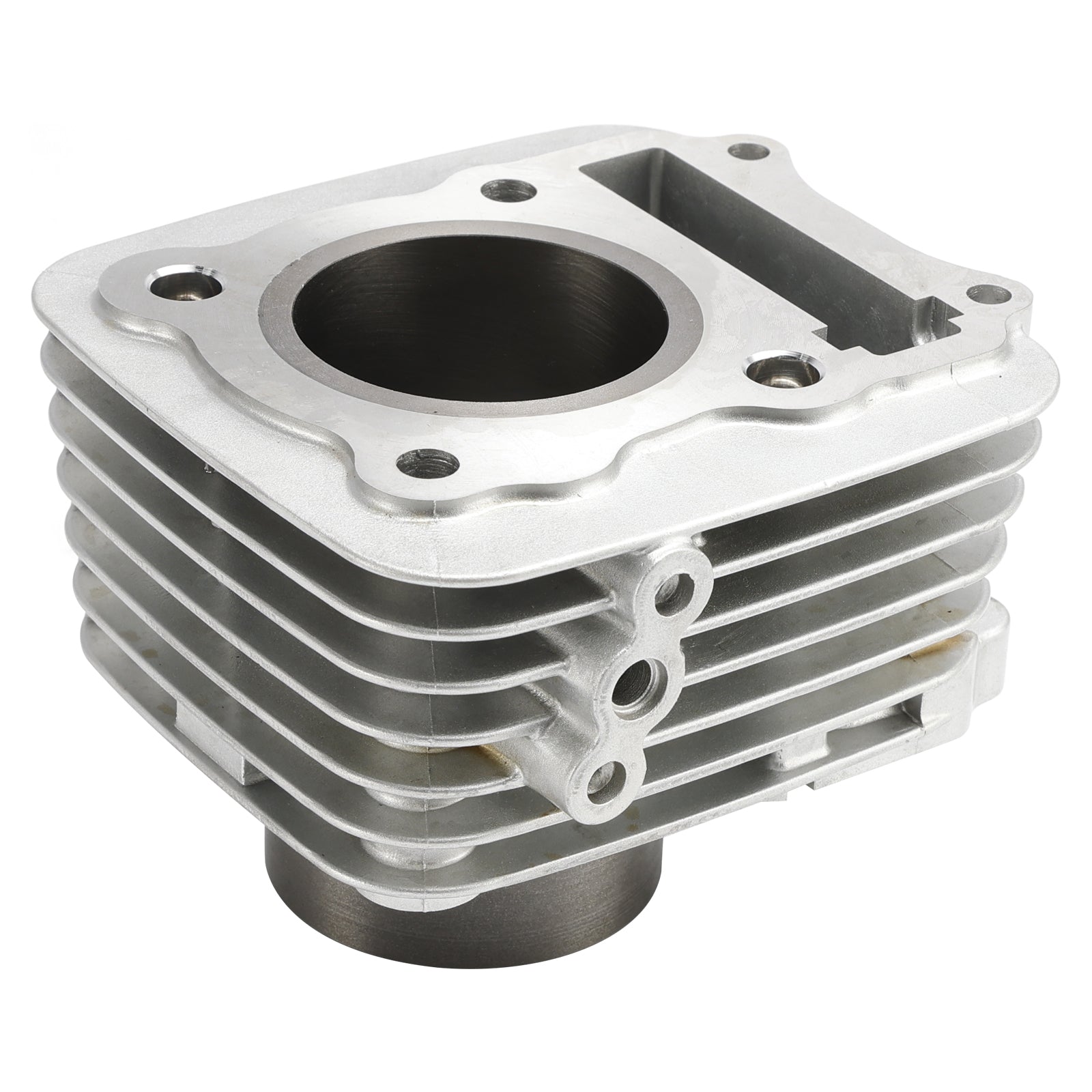

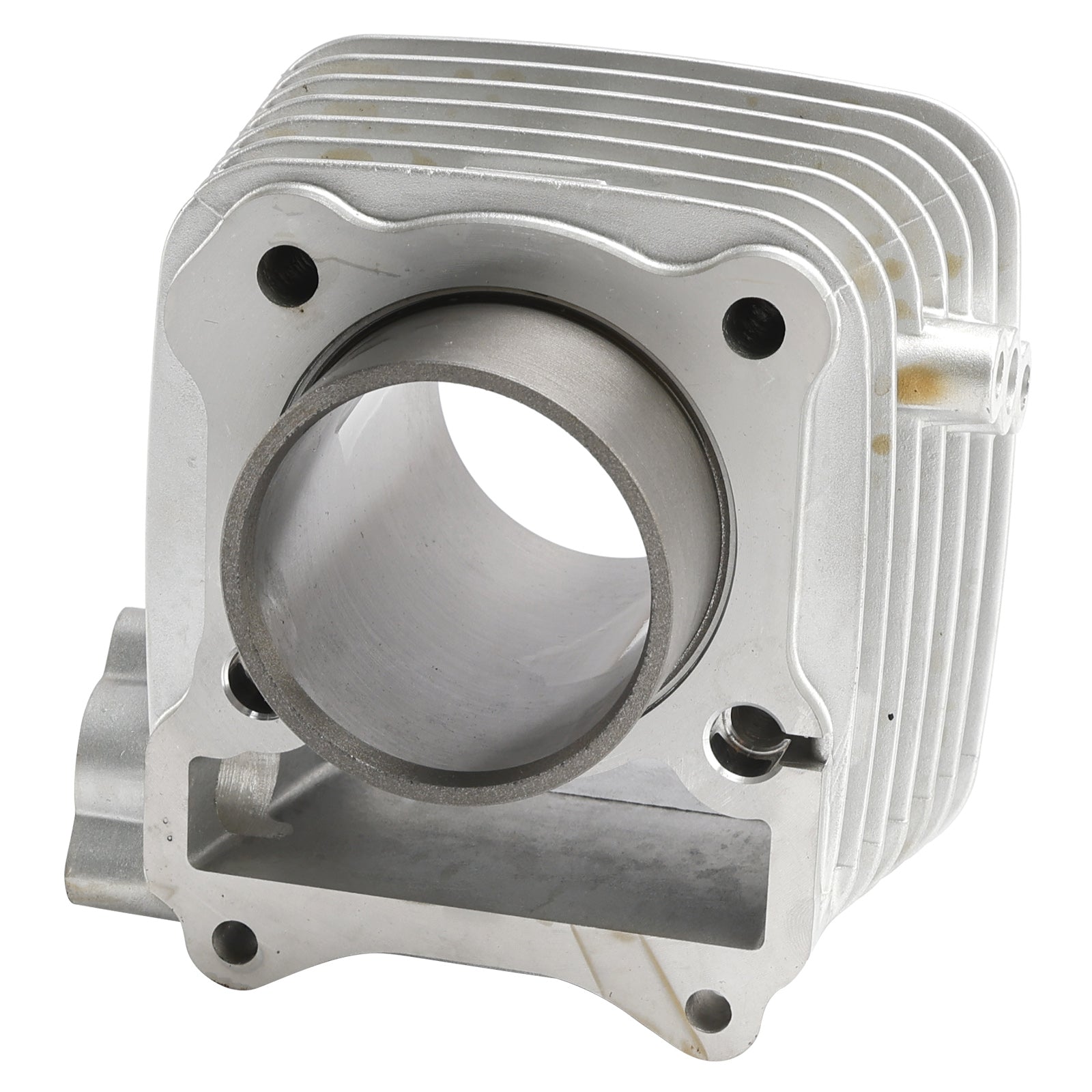

1x Cylinder

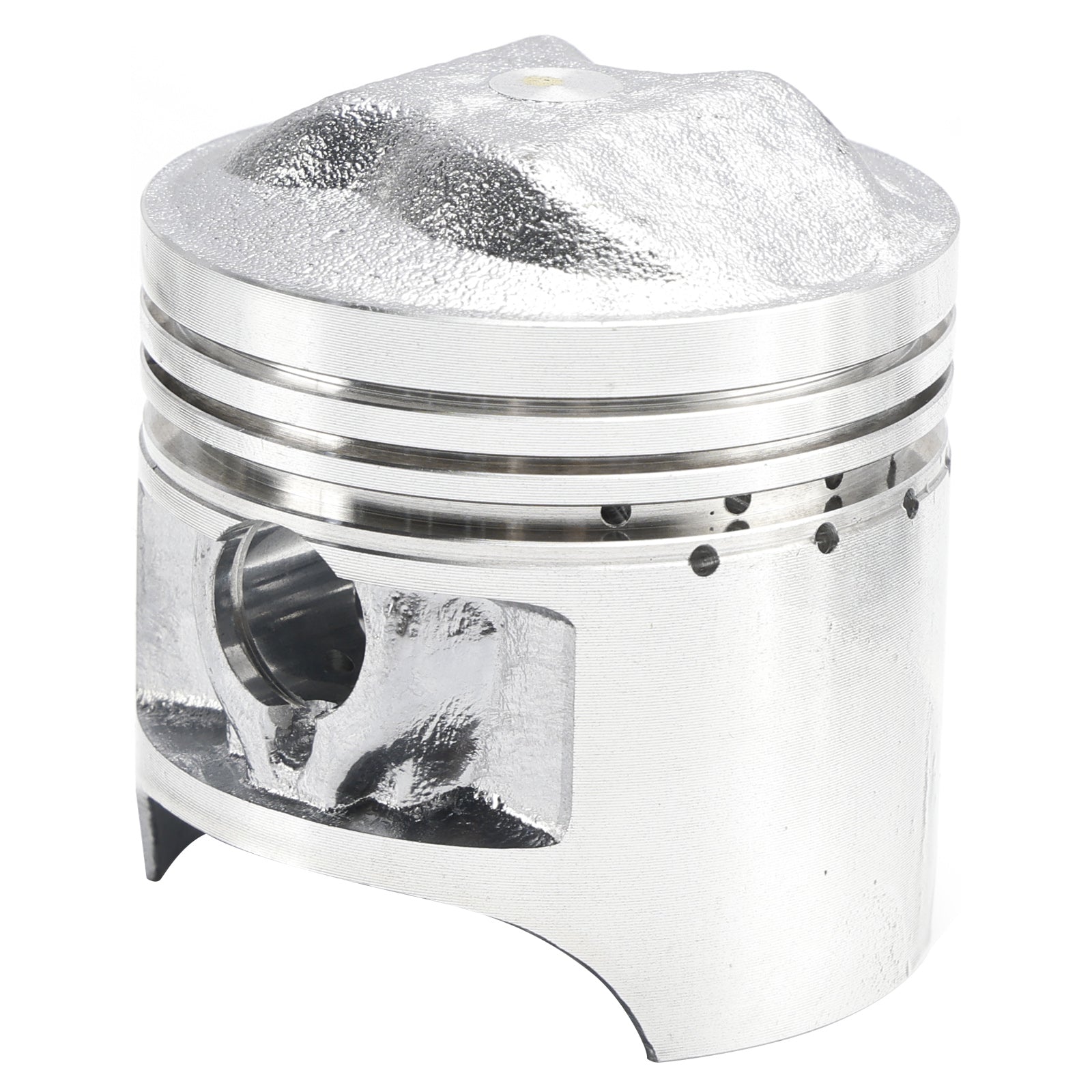

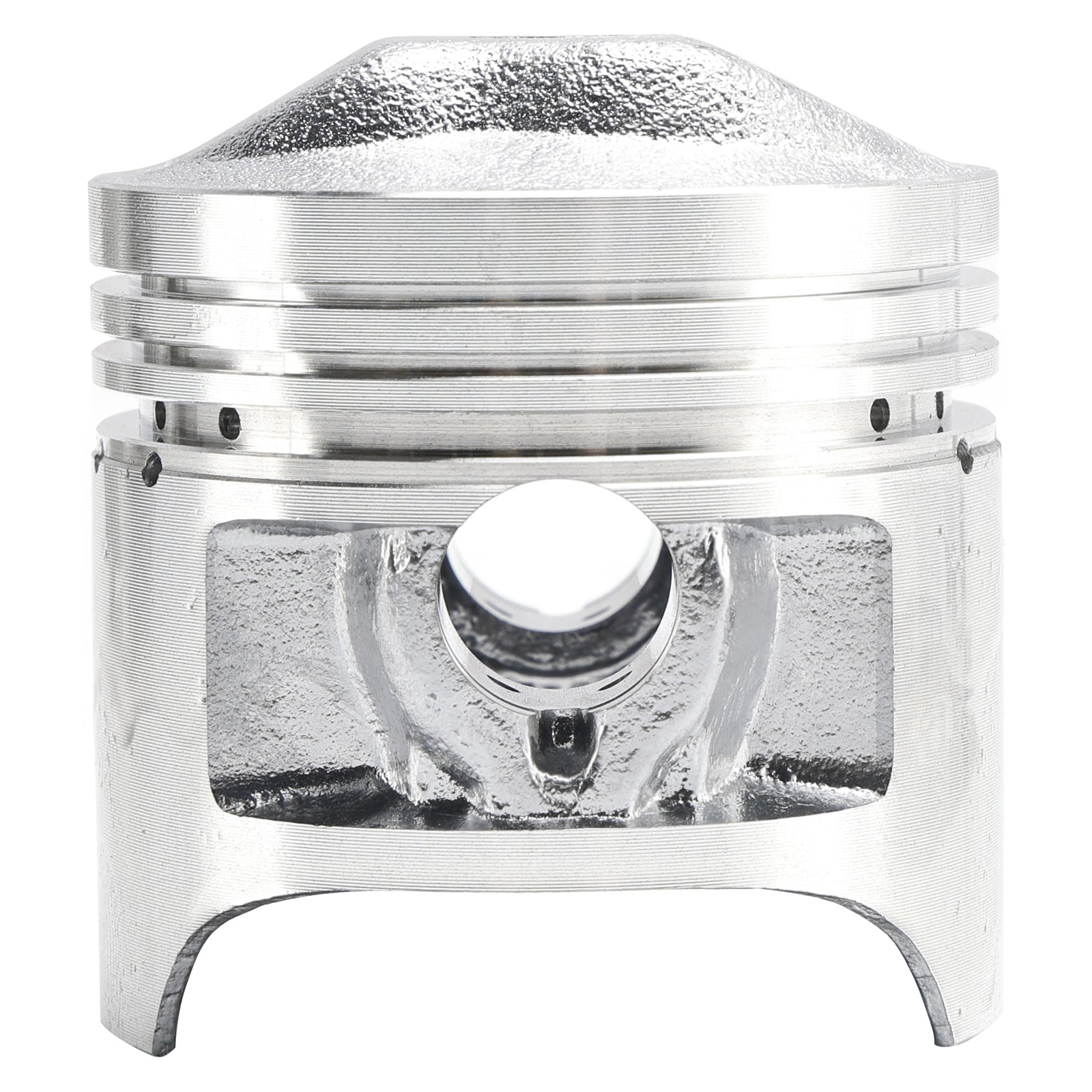

1x Domed Piston

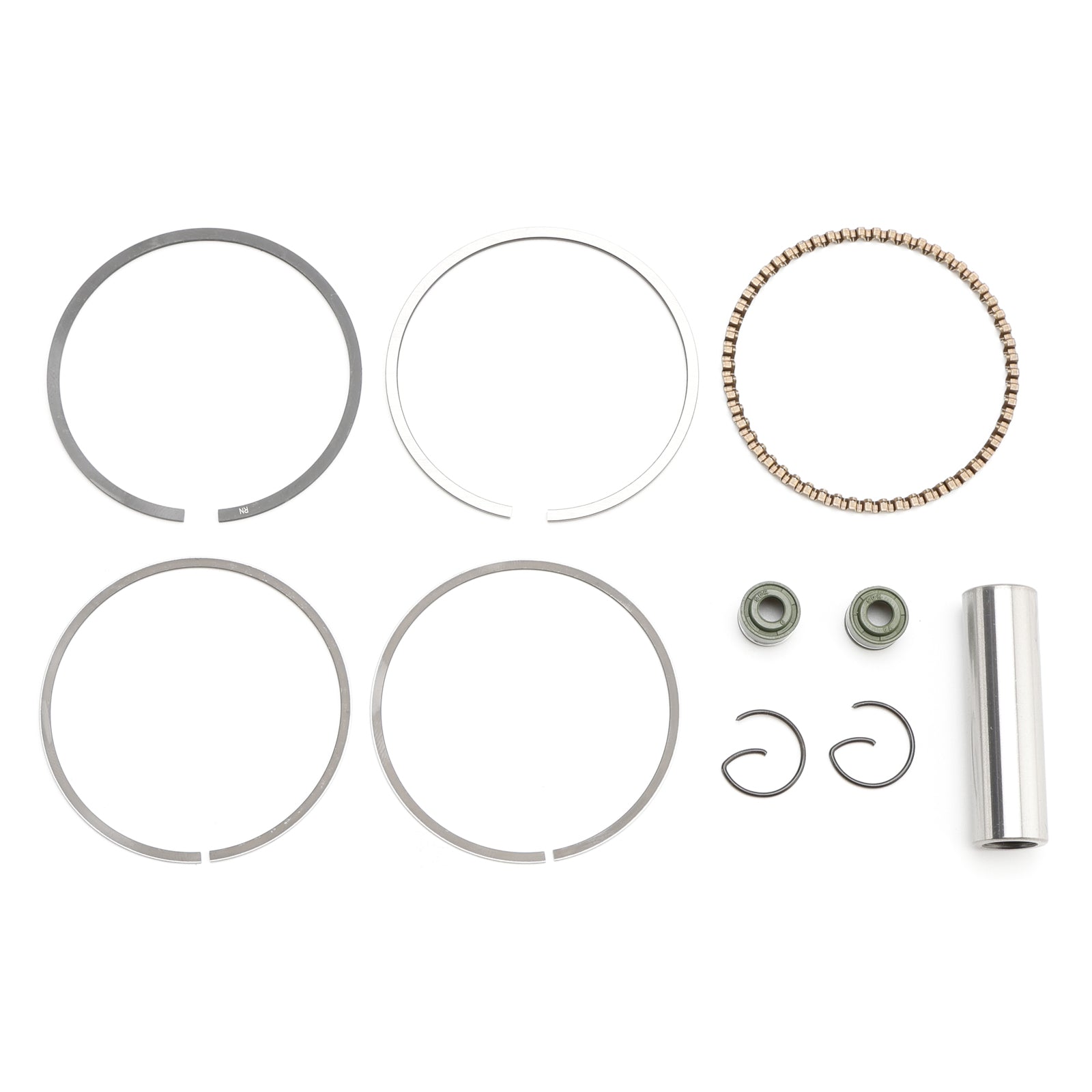

1x Piston Ring Set
1x 14mm Wristpin
1x Circlip(2)

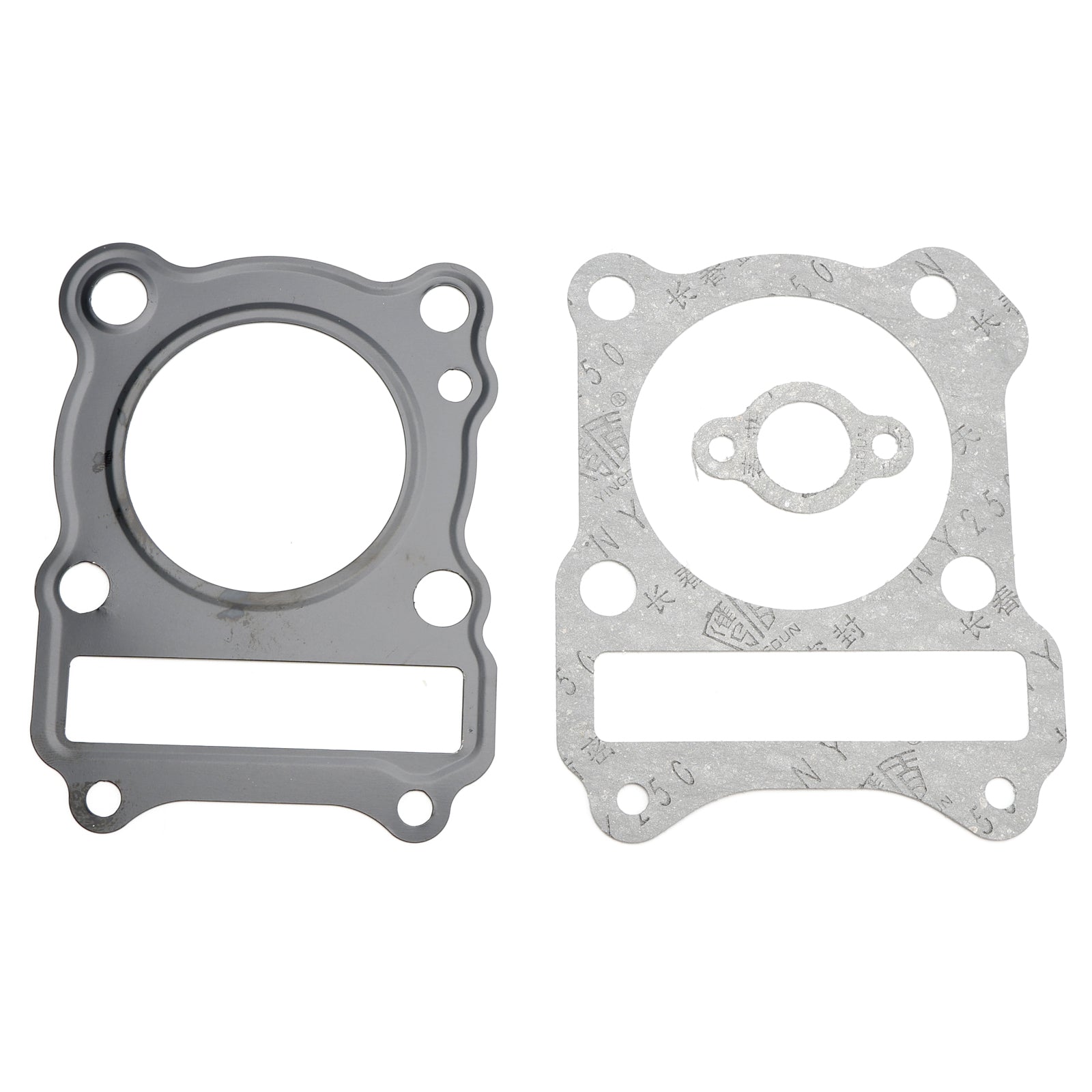

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
2x Valve Stem Seals
(Comes exactly as pictured.)
Notes:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
