1974-1976 Honda XL70 Top End Rebuild Kit Cylinder Head Piston Generic
Product Overview:

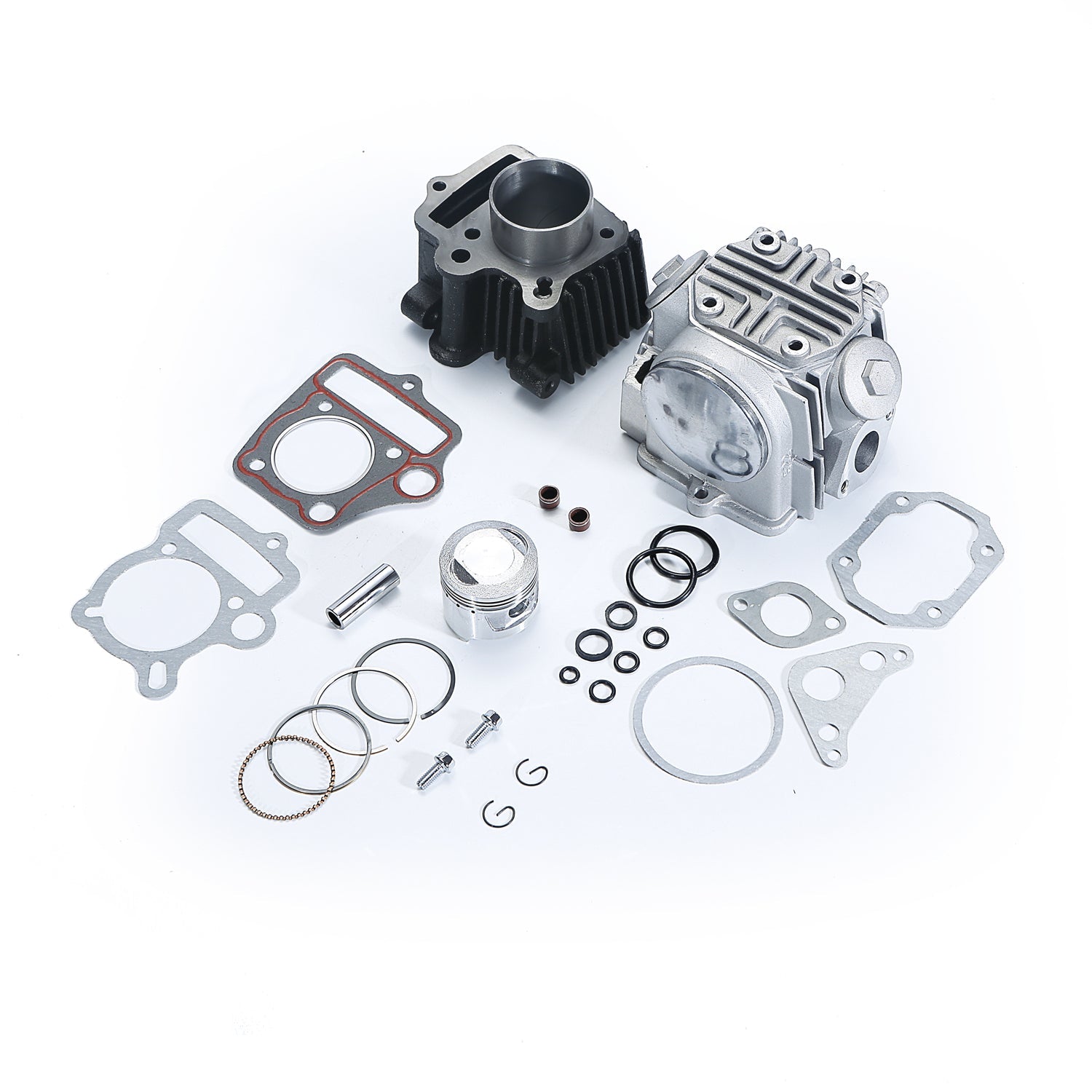

Complete top end rebuild kit includes piston, rings, wrist pin, clips, and top end gasket kit—exactly as pictured. The cast piston features high silicone content for added strength. Molybdenum Teflon-coated skirts help reduce friction and wear for longer service life.
Anodized piston dome improves heat resistance and durability. Gaskets are made from high-performance materials for better sealing and reliability.
Designed for standard bore size – 47.00mm. All parts are bolt-on ready for easy installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Bore size: STD 47 mm
Piston height: 13 mm
Combustion Chamber Size:
Outer Bore Size: 47mm
Inner Bore Size: 39mm
Intake Valve Outside Diameter: 23mm / Length 66mm
Exhaust Valve Outside Diameter: 20mm / Length 66mm
Replaces Part Number:
Cylinder: 12101-GB0-910, 12101-HB2-000, 12101-098-670, 12101-098-671, 12101-087-000, 12101-087-010
Cylinder Head Gasket: 12251-111-730
Cylinder Head Right Side Gasket: 12394-GB4-680
Cylinder Head Left Side Gasket: 12395-GW8-680
Cylinder Base Gasket: 12191-GW8-681, 12191-GB2-306, 12191-GB2-004, 12191-GB2-000, 12191-118-670, 12191-035-020, 12191-GW8-680, 12191-035-000
Intake Manifold Gasket: 17119-035-000
Compatibility:
Fit for Honda S65 Sport 65 All years
Fit for Honda TRX70 1086-1987
Fit for Honda ATC70 1978-1985?
Fit for Honda C70 Passport 70 1980-1983
Fit for Honda C70 Passport 70 1971-1972
Fit for Honda CRF70F 2004-2009?
Fit for Honda CRF70F 2011-2012
Fit for Honda CT70 Trail 70 1970-1994?
Fit for Honda CL70 1969 - 1972
Fit for Honda XR70R 1997-2003?
Fit for Honda SL70 Motosport 70 1971-1973
Fit for Honda XL70 1974-1976
(Please note that this kit is intended to be installed in it's entirety.)
(It is built to work as a unit and will not necessarily be an exact swap with individual existing components on different Honda 70 models. )
(Compatibility Chart is for Reference ONLY!!!)?
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:
Cylinder Head
Cylinder Body
Piston
Piston Ring Set
Wristpin?
Circlip(2)
Cylinder Head Left side Gasket
Cylinder Head Right side Gasket
Cylinder Head Gasket
Cylinder Base Gasket
Intake Manifold Gasket
Valve Stem Seals(2)
Preinstalled Rocker arms
Preinstalled Intake/ Exhaust valves
Hi-lift Camshaft
Camshaft sprocket
Set of O-rings
Notes:
Please confirm that the engine in your bike is the year and model you expect.?
Some of these bikes are over 50 years old now and are not always all original.
