2001-2005 Yamaha Raptor 660R 102mm Cylinder Jug Piston Top End Big Bore Kit Generic
Product Overview
This complete top end rebuild kit includes everything shown: piston, rings, pin, clips, and top end gasket kit.
Cast piston features a high silicone content for enhanced strength and durability.
Molybdenum Teflon-coated skirts reduce friction and wear for extended service life.
Anodized piston dome provides excellent heat resistance and a longer lifespan.
Gaskets are made from performance-grade materials for reliable sealing.
Includes all gaskets pictured to rebuild the top end.
Kit is designed for big bore size 102.00mm.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Surface Finish: Forged

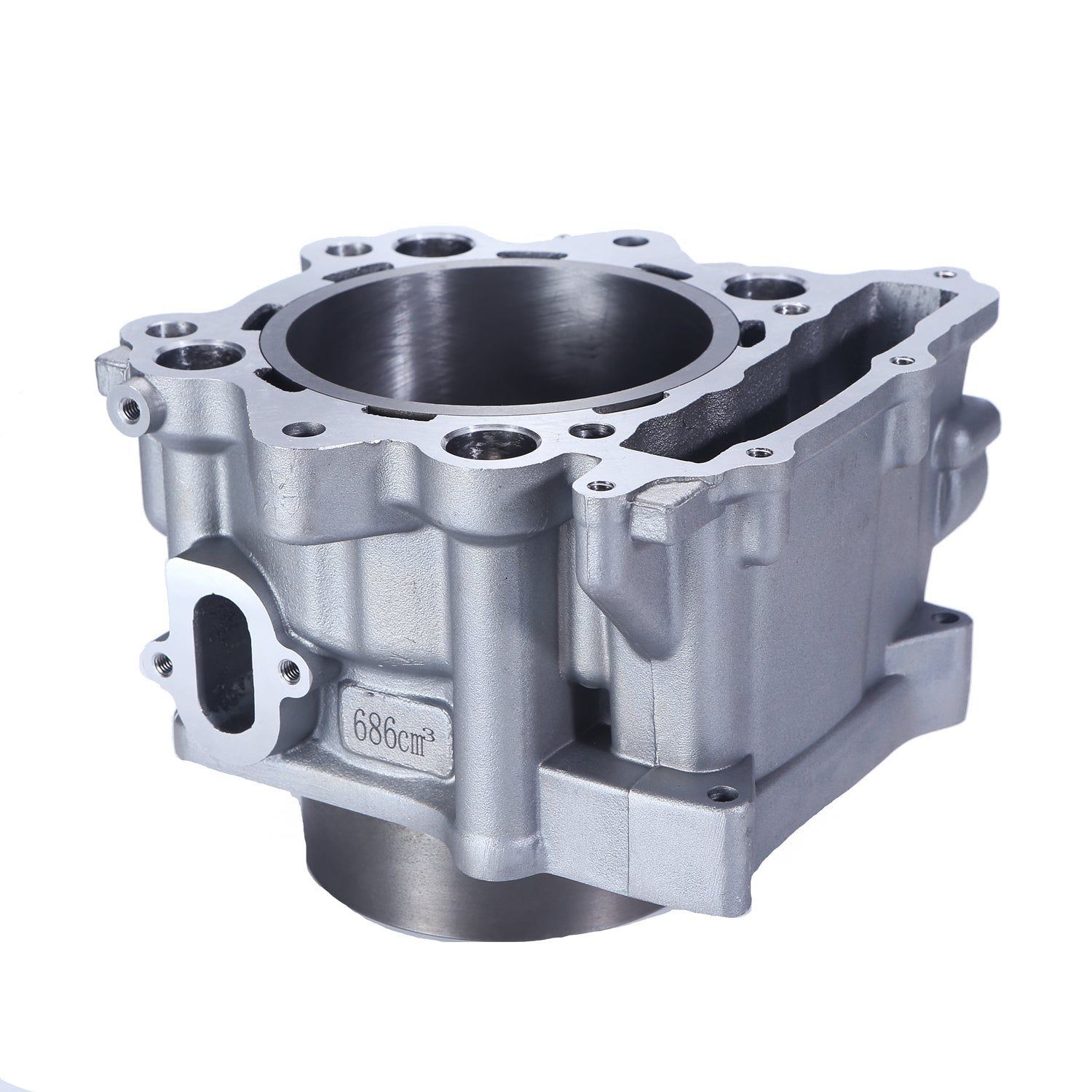

Actual Displacement: 686cc
Bore Type: Big Bore
Bore Size: 102.00mm
Stroke: 84.00mm
Replaces Part Number:
Cylinder: 5KM-11310-00-00, 3YF-11310-01-00
Piston: 3YF-11631-00-X0
Cylinder Base Gasket: 3YF-11351-00-00
Cylinder Head Gasket: 3YF-11181-00-00
Ring Set: 2C6-11603-00-00
Pin, piston: 3YF-11633-01-00
Circlips, piston: 93450-24028
Compatibility:
Fit for Yamaha Raptor 660R 2001-2005
Fit for Yamaha Grizzly 660 2002-2008
Fit for Yamaha Rhino 660 2004-2007
(Compatibility Chart is for Reference ONLY!!!)?
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:

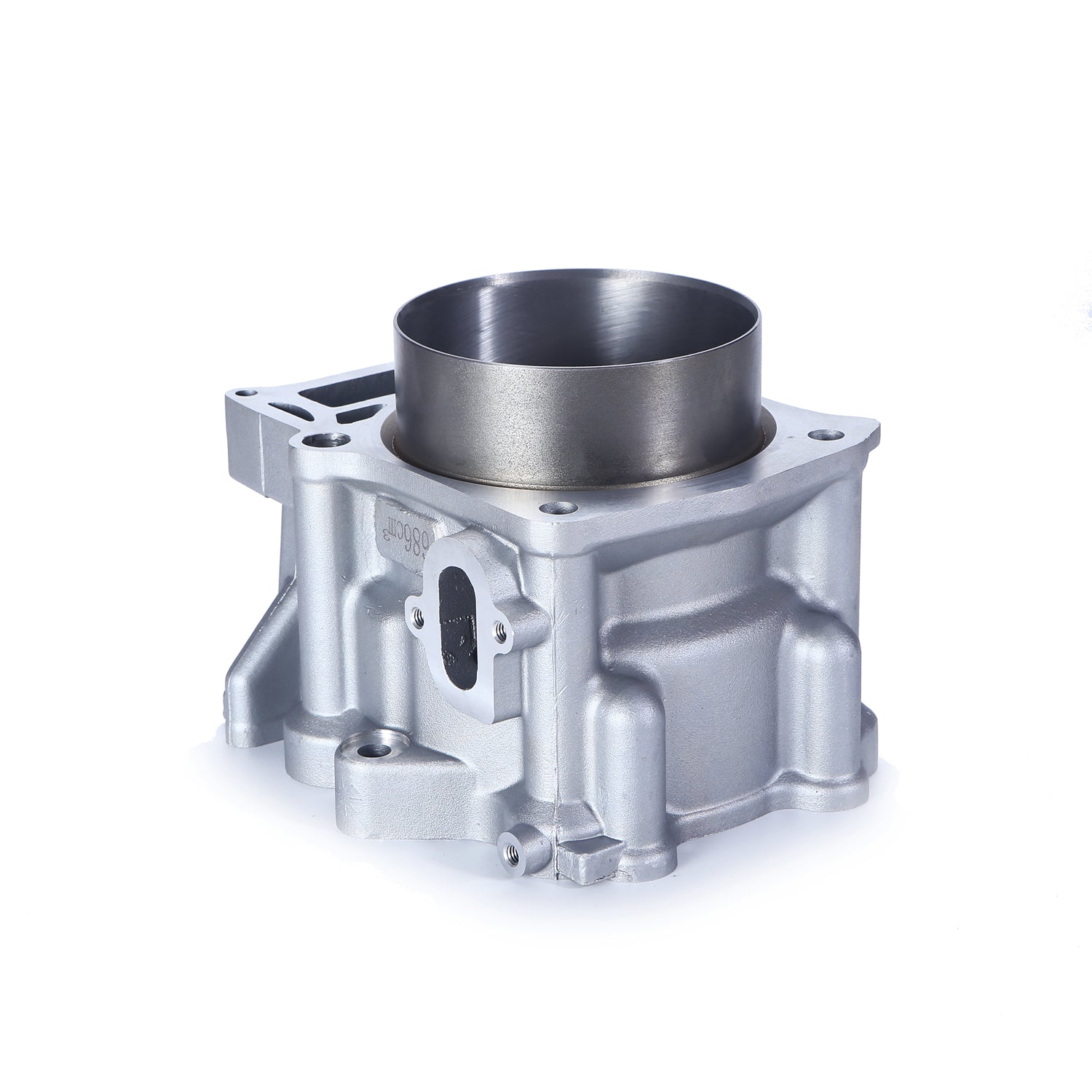

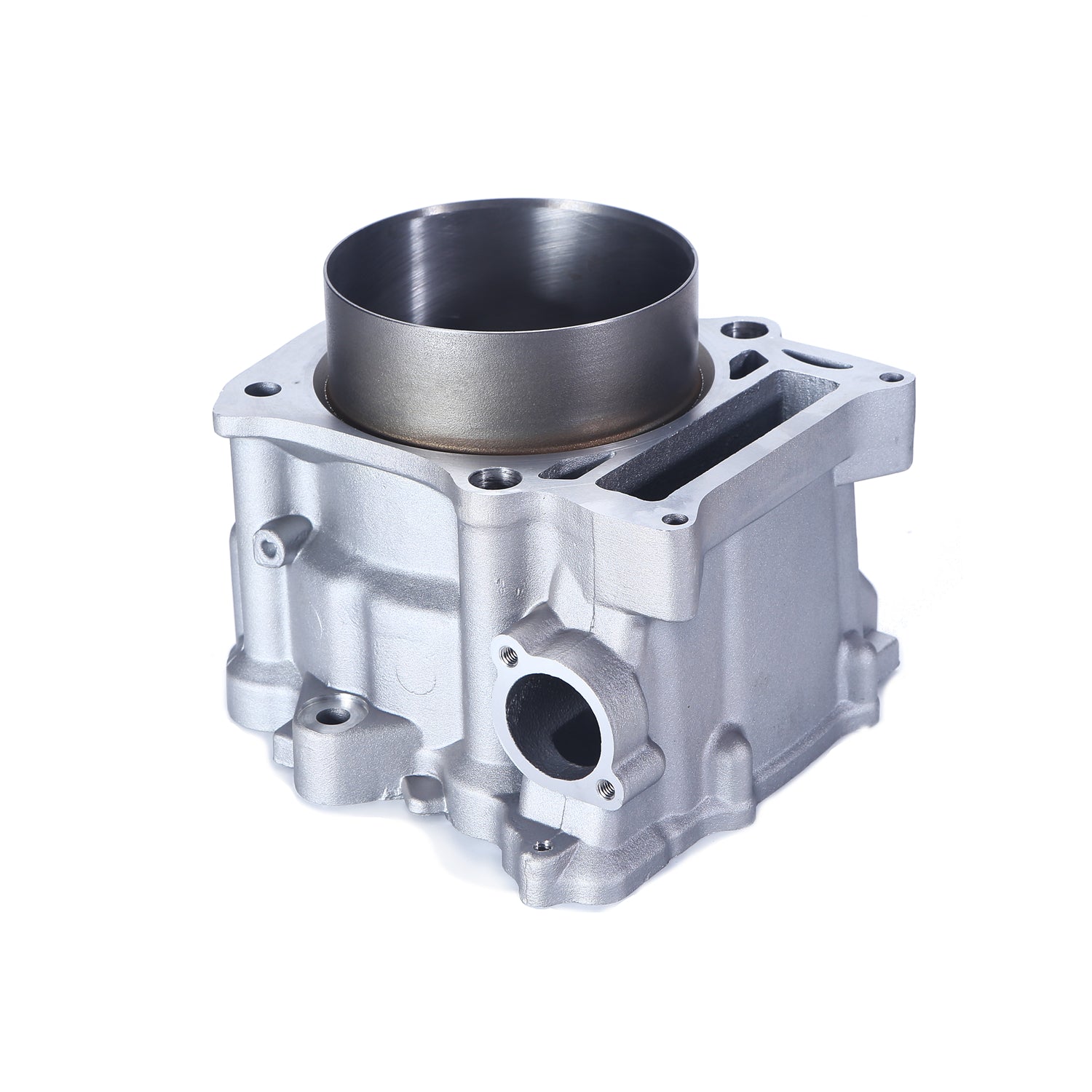

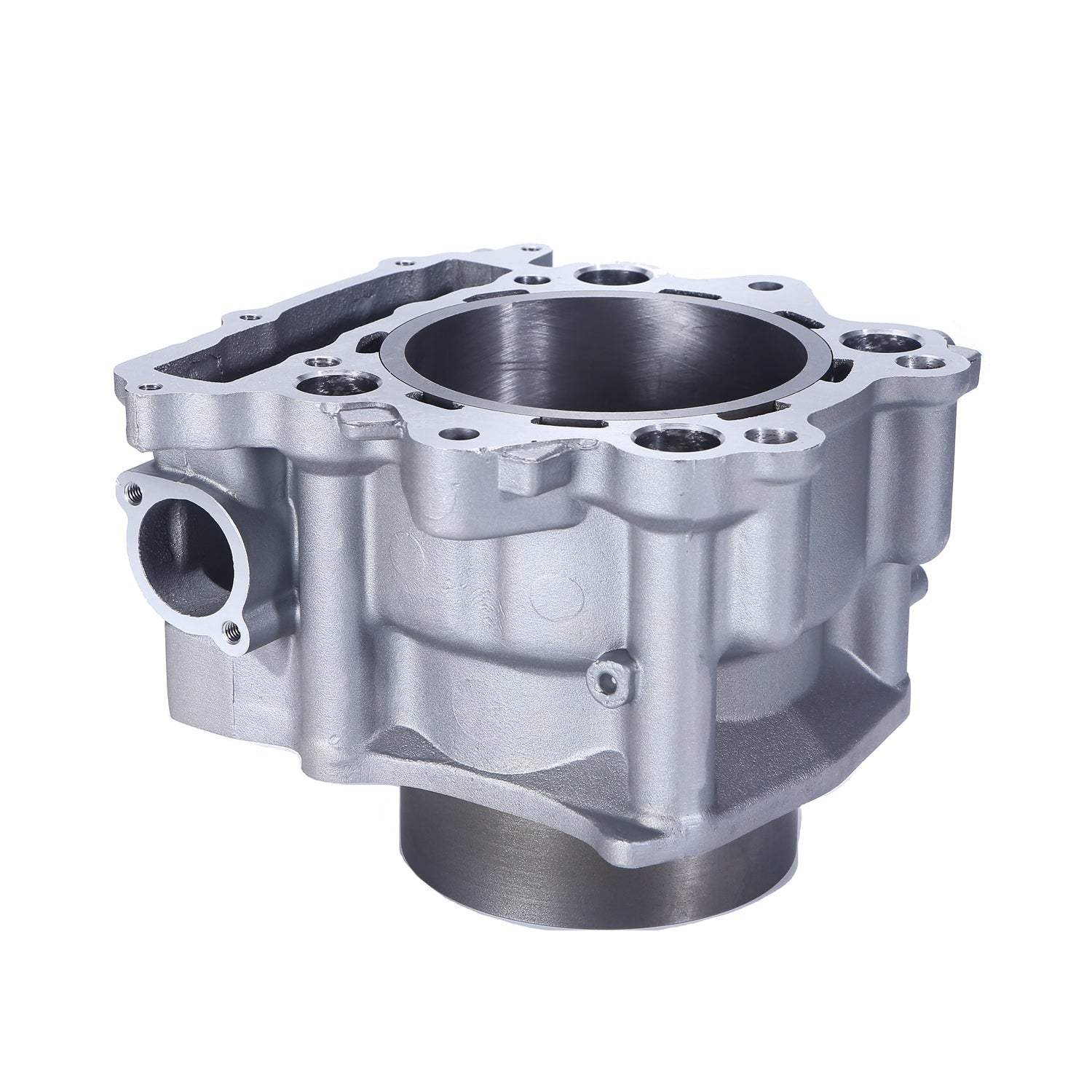

1x Cylinder (Big Bore)

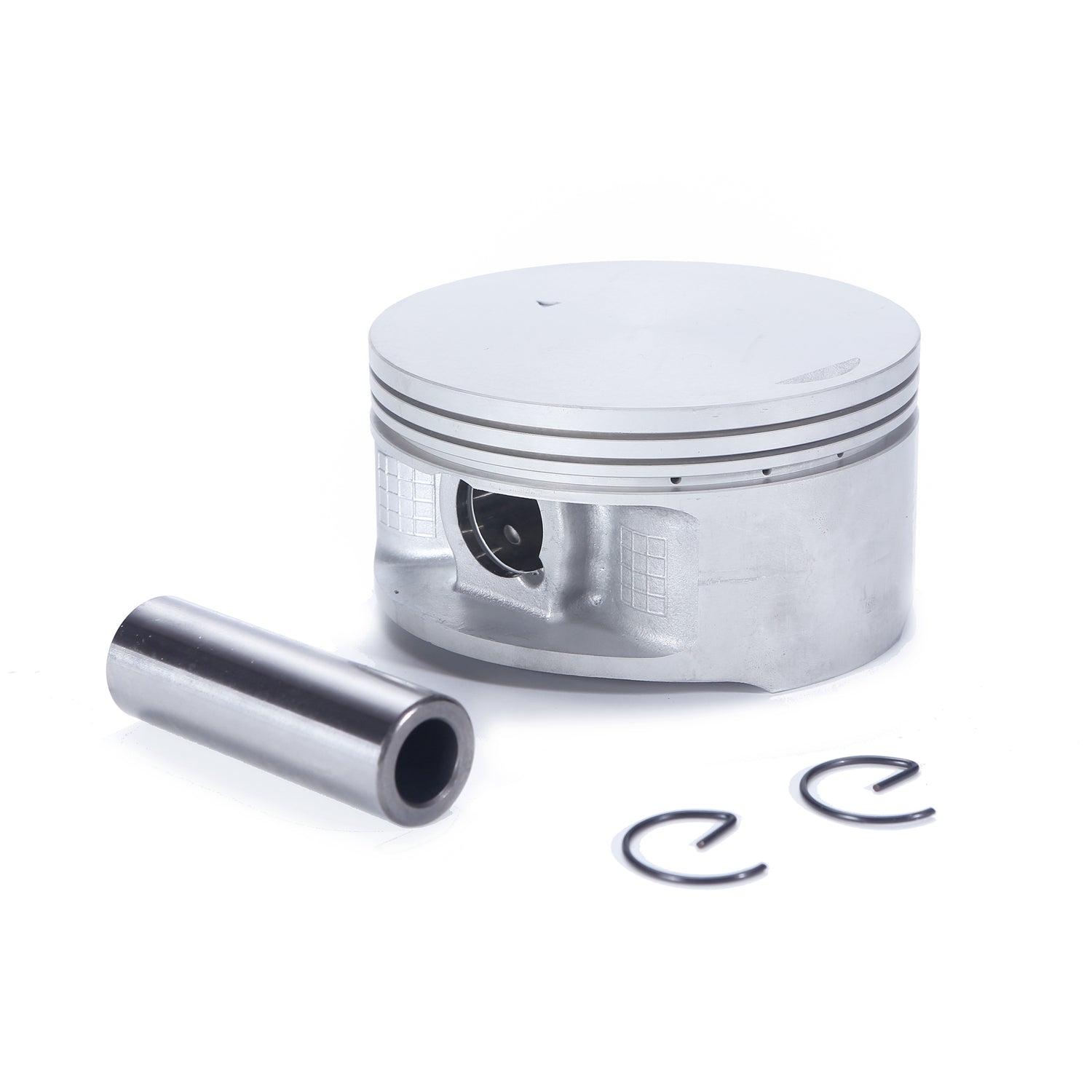

1x Piston

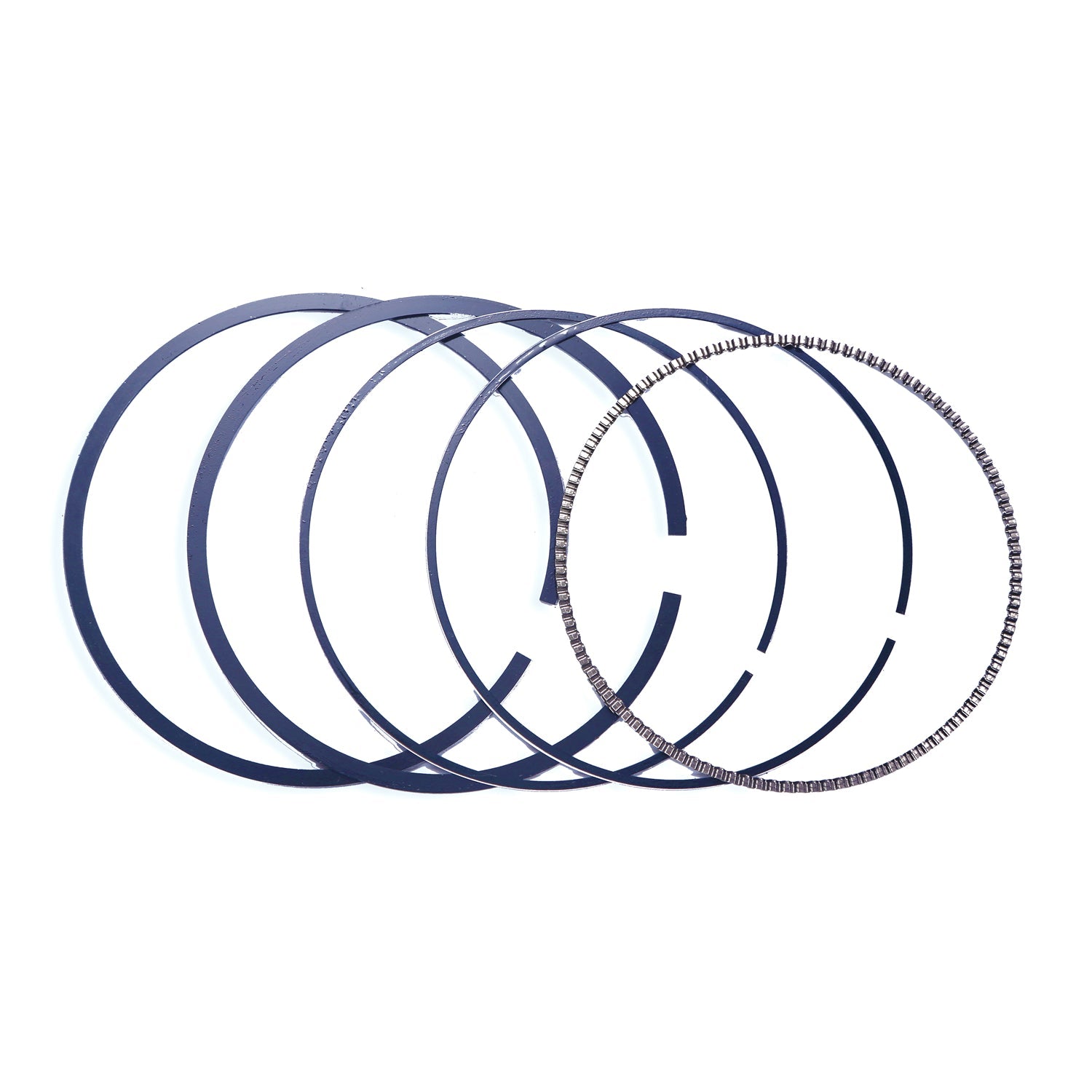

1x Piston Ring Set
1x Wristpin?
1x Circlip(2)

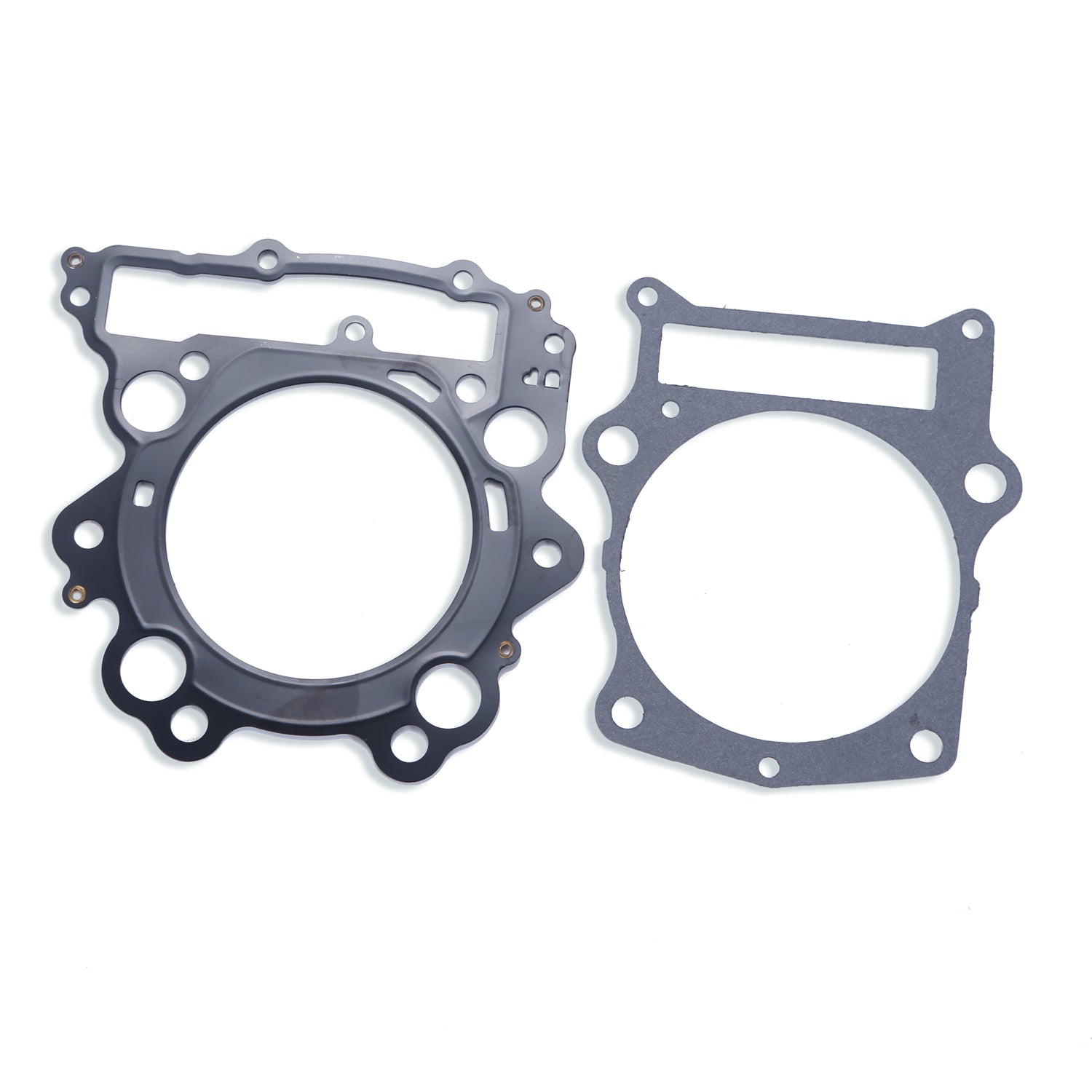

1x Cylinder Base Gasket
1x Cylinder Head Gasket
Notes:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
